General Specifications
Neck Geometry
- 21mm at First Fret, Elliptical Profile
- 23mm at Twelfth Fret, Asymmetrical Profile
- 7" - 20" Compound Radius
- Compensated Nut
- Proportional String Offsets
- Angled Heel
- Extended Tenon
- Carbon Fibre Reinforcements
Scale Lengths
Single Scale
- 4 String - 33.5"
- 4 String - 34.5"
19mm Spacing
- 5 String - 34.5"
18mm Spacing
- 6 String - 34.5"
18mm Spacing
Multi Scale
- 4 String - 35" - 33.5"
- 4 String - 36" - 34.5"
19mm Spacing
- 5 String - 36.5" - 34.5"
- 5 String - 37" - 35"
18mm Spacing
- 6 String - 37" - 34.5"
18mm Spacing

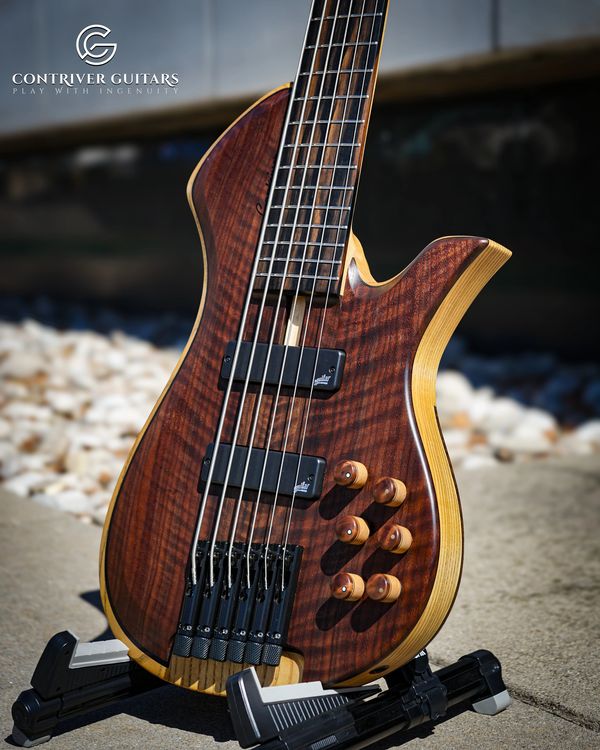

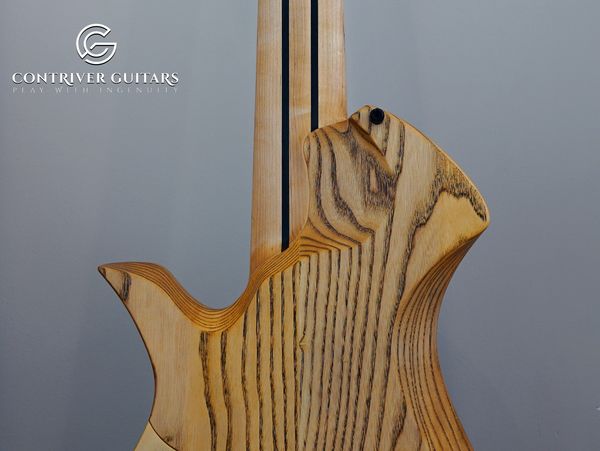

Body
- 1.75" Thick
- Sculpted Heel
- Grain Matched Magnetic Back Plate
- Metal+Wood String Retainer
- Accented Pickups
- Custom Wood Knobs

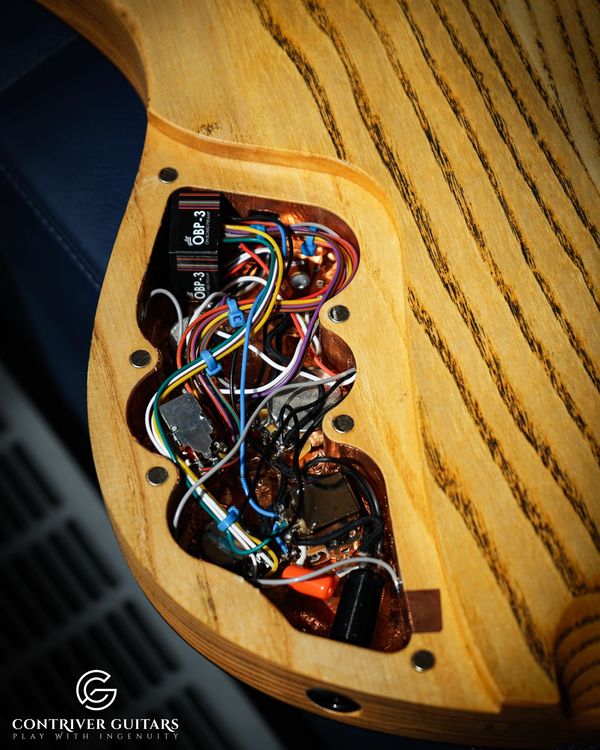

Electronics
- Customizable Control Layout
- Copper Shielding
- Alpha Pots
- SwitchCraft Toggles
- SwitchCraft Barrel Jack
- Orange Drop Capacitors
Stock, Dimarzio, Elysian or Bareknuckle Pickups.
Standard Strings
34.5" Scale Standard
- F3 - 0.020” - 33.44Lbs
C3 - 0.029” - 37.64Lbs
G2 - 0.041” - 39.63Lbs
D2 - 0.057” - 41.55Lbs
A1 - 0.076” - 41.37Lbs
E1 - 0.102” - 43.55Lbs
B0 - 0.136” - 40.40Lbs
33.5" Short Scale
- F3 - 0.022” - 38.13Lbs
C3 - 0.031” - 39.54Lbs
G2 - 0.043” - 40.87Lbs
D2 - 0.059” - 42.52Lbs
A1 - 0.079” - 41.78Lbs
E1 - 0.106” - 41.95Lbs
B0 - 0.142” - 41.41Lbs
Multi Scale Standard
- F3 - 34” - 0.021” - 35.81Lbs
C3 - 34.5” - 0.029” - 37.64Lbs
G2 - 35” - 0.041” - 40.79Lbs
D2 - 35.5” - 0.055” - 41.09Lbs
A1 - 36” - 0.073” - 41.45Lbs
E1 - 36.5” - 0.098” - 42.88Lbs
B0 - 37” 0.130” - 42.6Lbs
Multi Scale Low F#
- C3 - 34” - 0.029” - 36.56Lbs
G2 - 34.5” - 0.041” - 39.63Lbs
D2 - 35” - 0.055” - 39.94Lbs
A1 - 35.5” - 0.073” - 40.31Lbs
E1 - 36” - 0.098” - 41.71Lbs
B0 - 36.5” 0.130” - 41.45Lbs
F#0 - 37” - 0.168” - 39.43Lbs
